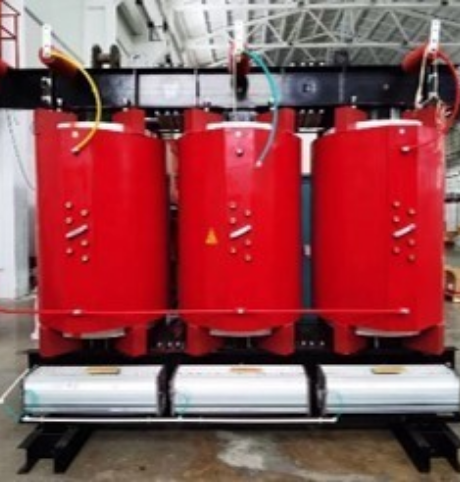

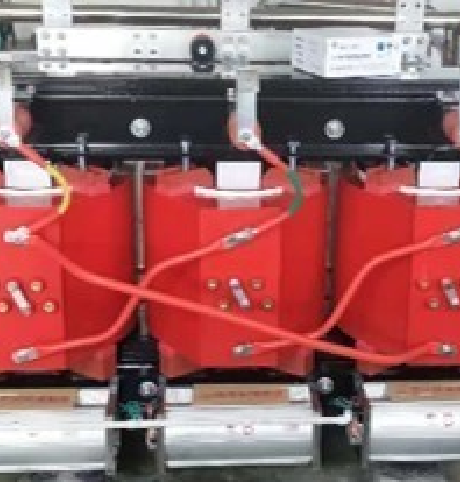

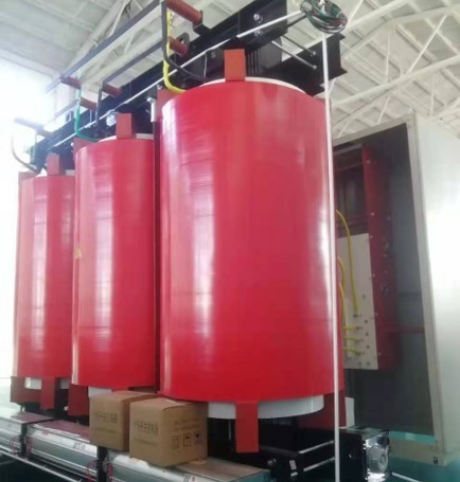

Oil-type Transformers - Substsation type - annaul 100 unit capacity, 2 month LT Oil-type Transformers - Distribution type - 18,000 units capacity, 2 month LT Dry-type Transformer - Cast Resin

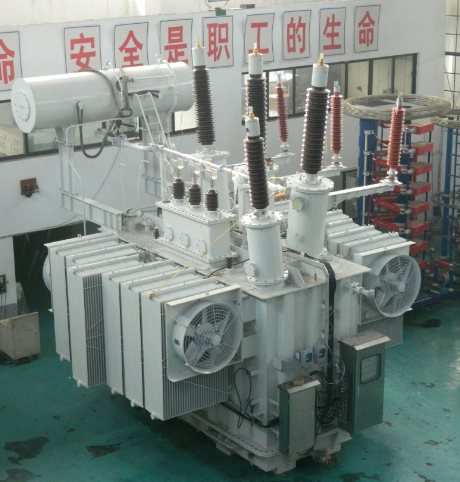

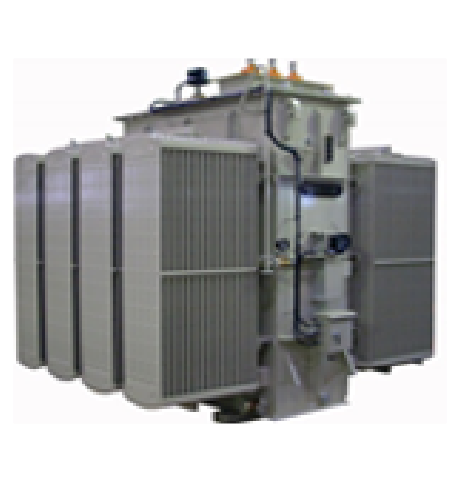

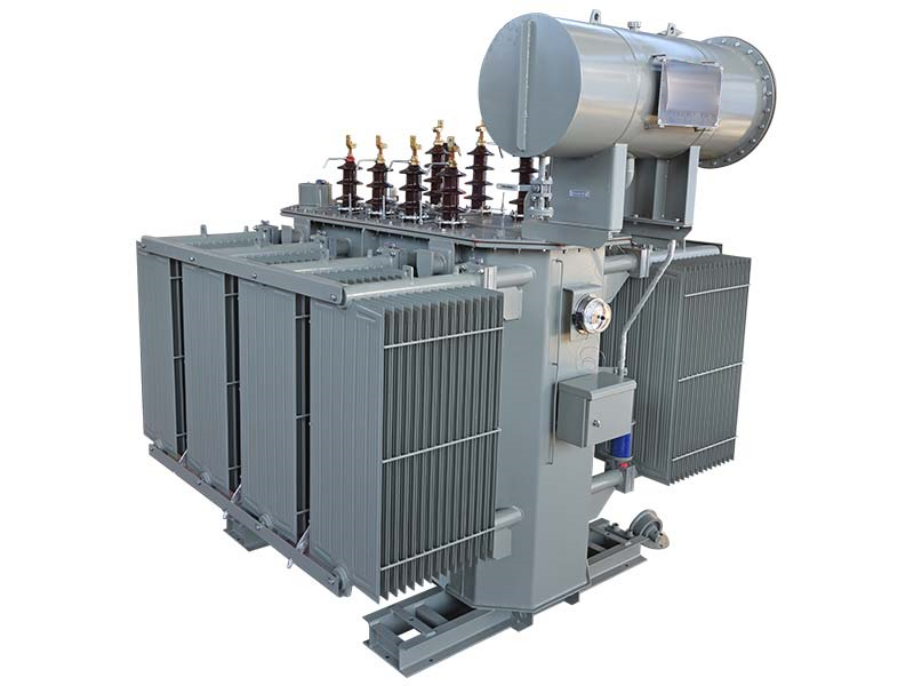

WXT's liquid-filled substation transformers are designed,built, and tested in accordance with interntional standards including IEC 60076, GB1094, ANSI C.57, US DOE Efficency, CSA, NEMA ,and IEEE as applicable. The insulating liquid can be mineral oil ( ON type ), high flash point ester fluid, and silicon oil ( KN type ). The appllications are for electric utilies, commericial and industrial. The OLTC could be built on LV side
The transformers can be designed and built with conservator or hermetically-sealed system.
The voltage ratings up to: 230kV AC 50/60Hz - Substation Type
The KVA ratings up to: 100 MVA
Typical Lead time: 2 months ExWork
Annual Capacity: 100 units ( 69kV - 138kV )

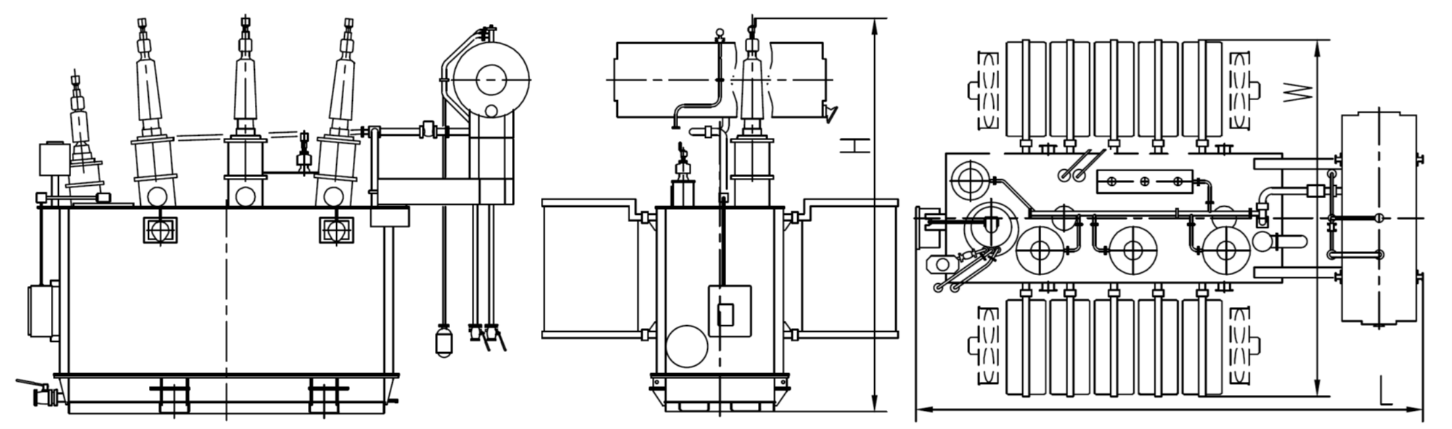

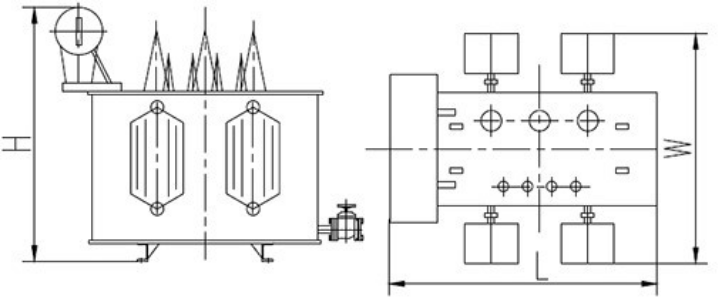

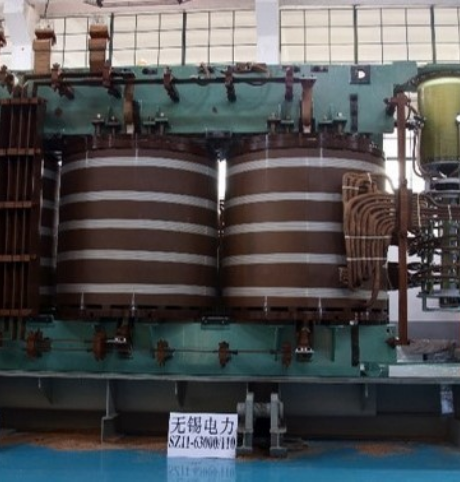

35kV | kVA Ratings | Windings | Impedance(%) | Weight (Ton) | Dim L*W*H (mm) | No load Loss (kW) | Loaad Loss (kW) |
---|---|---|---|---|---|---|---|
35kV ±2x2.5%, LV 0.4kV | 50 | Dyn11 | 6.5 | 1.28 | 1400*1000*1800 | 0.16 | 1.2/1.14 |
100 | 1.67 | 1450*1050*1900 | 0.23 | 2.01/1.91 | |||
125 | 1.9 | 1500*1100*1900 | 0.27 | 2.37/2.26 | |||
160 | 2.2 | 1550*1150*1950 | 0.28 | 2.82/2.68 | |||
200 | 2.4 | 1600*1200*2000 | 0.34 | 3.32/3.16 | |||
250 | 2.5 | 1700*1600*2100 | 0.4 | 3.95/3.76 | |||
315 | 2.6 | 1900*1700*2200 | 0.48 | 4.75/4.53 | |||
400 | 2.8 | 2000*1800*2300 | 0.58 | 5.74/5.47 | |||
500 | 3 | 2100*1900*2400 | 0.68 | 6.91/6.58 | |||
630 | 3.3 | 2310*2200*2500 | 0.83 | 7.86 | |||
800 | 3.8 | 2500*2250*2550 | 0.98 | 9.4 | |||
1000 | 4.2 | 2550*2300*2600 | 1.15 | 11.5 | |||
1250 | 4.8 | 2680*2400*2700 | 1.4 | 13.9 | |||
1600 | 5.7 | 2700*2450*2750 | 1.69 | 16.6 | |||
2000 | 5.7 | 2700*2450*2750 | 1.99 | 19.7 | |||
2500 | 5.7 | 2700*2450*2750 | 2.36 | 23.2 |
69kV | kVA Ratings | Windings | Impedance(%) | Weight (Ton) | Dim L*W*H (mm) | No load Loss (kW) | Loaad Loss (kW) |
---|---|---|---|---|---|---|---|
69kV with ±2x2.5% DETC, L.V. 6.3,6.6,10.5KV | 6300 | YNd11 | 9~11 10~12 |
22 | 5600*3800*4000 | 8 | 34.2 |
8000 | 24 | 5700*4000*4200 | 9.6 | 40.5 | |||
10000 | 27 | 5800*4200*4400 | 11.3 | 47.8 | |||
12500 | 30 | 5900*4300*4500 | 13.4 | 56.8 | |||
16000 | 33 | 6000*4400*4600 | 16.1 | 69.8 | |||
20000 | 36 | 6100*4500*4800 | 19.2 | 84.6 | |||
25000 | 43 | 6500*4500*5000 | 22.7 | 100 | |||
31500 | 49 | 6600*4600*5200 | 26.9 | 120 | |||
40000 | 59 | 6800*4800*5300 | 32.2 | 141 | |||
50000 | 69 | 7000*5000*5500 | 38 | 167 | |||
63000 | 75 | 7400*5300*5700 | 44.9 | 198 |
110kV | kVA Ratings | Windings | Impedance(%) | Weight (Ton) | Dim L*W*H (mm) | No load Loss (kW) | Loaad Loss (kW) |
---|---|---|---|---|---|---|---|
110kV with ±8x1.25% OLTC, L.V.6.3,6.6,10.5KV | 6300 | YNd11 | 10.5 12~18 |
24 | 5800*3900*4200 | 8 | 35 |
8000 | 26 | 5900*4100*4400 | 9.6 | 42 | |||
10000 | 29 | 6000*4300*4600 | 11.3 | 50 | |||
12500 | 32 | 6100*4400*4700 | 13.4 | 59 | |||
16000 | 36 | 6200*4600*4800 | 16.1 | 73 | |||
20000 | 39 | 6300*4700*5000 | 19.2 | 88 | |||
25000 | 46 | 6700*4700*5200 | 22.7 | 104 | |||
31500 | 52 | 6800*4800*5400 | 27 | 123 | |||
40000 | 63 | 7000*5000*5500 | 32.3 | 156 | |||
50000 | 74 | 7200*5300*5700 | 38.2 | 194 | |||
63000 | 81 | 7600*5600*5900 | 45.4 | 232 |

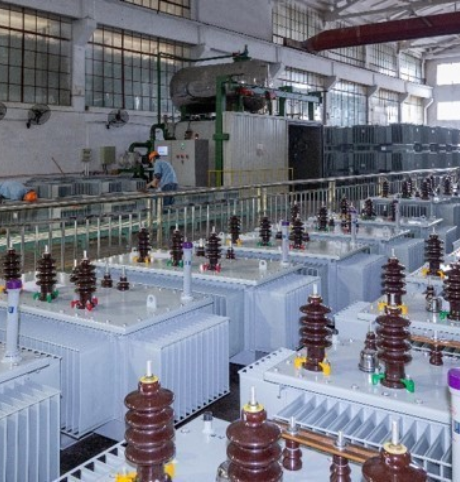

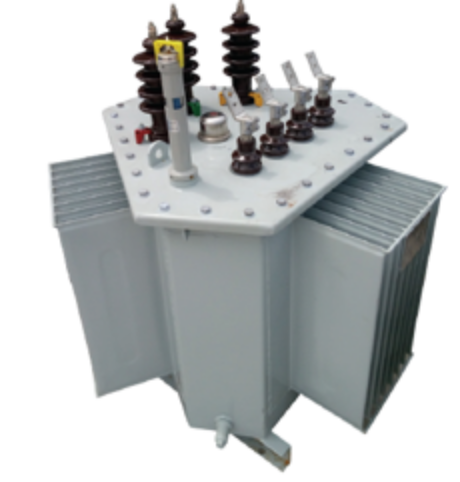

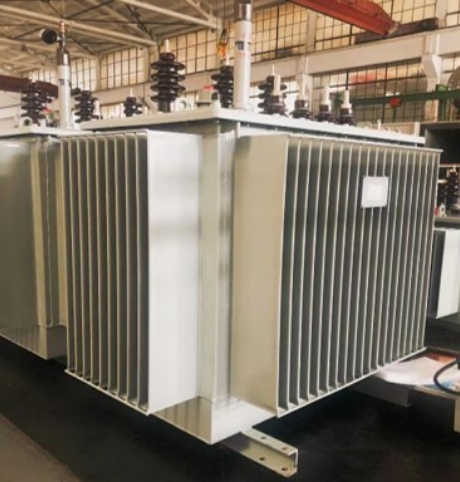

The voltage ratings up to: 36kV AC 50/60Hz - Distribution
The KVA ratings up to: 3000 KVA
20kV Conventional | kVA Ratings | Windings | Impedance(%) | Weight (Ton) | Dim L*W*H (mm) | No load Loss (kW) | Loaad Loss (kW) |
---|---|---|---|---|---|---|---|
20kV ±2x2.5%, L.V 0.4kV | 30 | Dyn11/Yyn0 | 4 4.5 |
0.9 | 1200*950*1400 | 100 | 690/660 |
50 | 1 | 1200*950*1500 | 130 | 1010/960 | |||
63 | 1.1 | 1200*950*1500 | 150 | 1200/1150 | |||
80 | 1.2 | 1200*950*1600 | 180 | 1440/1370 | |||
100 | 1.4 | 1300*1000*1750 | 200 | 1730/1650 | |||
125 | 1.6 | 1400*1100*1800 | 240 | 2080/1980 | |||
160 | 1.7 | 1450*1200*1850 | 290 | 2540/2420 | |||
200 | 1.8 | 1500*1300*1900 | 340 | 3000/2860 | |||
250 | 2 | 1600*1500*2000 | 400 | 3520/3350 | |||
315 | 2.2 | 1800*1600*2100 | 480 | 4210/4010 | |||
400 | 2.4 | 1900*1700*2200 | 570 | 4970/4730 | |||
500 | 2.7 | 2000*1800*2300 | 680 | 5940/5660 | |||
630 | 3 | 2150*2000*2350 | 810 | 6820 | |||
800 | 3.4 | 2250*2050*2400 | 980 | 8250 | |||
1000 | 4 | 2400*2200*2450 | 1150 | 11330 | |||
1250 | 4.5 | 2500*2300*2500 | 1380 | 13200 | |||
1600 | 5 | 2600*2400*2600 | 1660 | 15950 | |||
2000 | 5.6 | 2700*2450*2700 | 1950 | 19140 | |||
2500 | 7.1 | 2850*2550*2800 | 2340 | 22220 |
